Multiple thickness options range from 20mm to 50mm. Self-adhesive backing is optional for fast, convenient DIY installation without extra glue. Widely applied for wall soundproofing of recording studios, KTVs and meeting rooms, as well as noise reduction and heat preservation for air ducts, fans and various HVAC machinery.

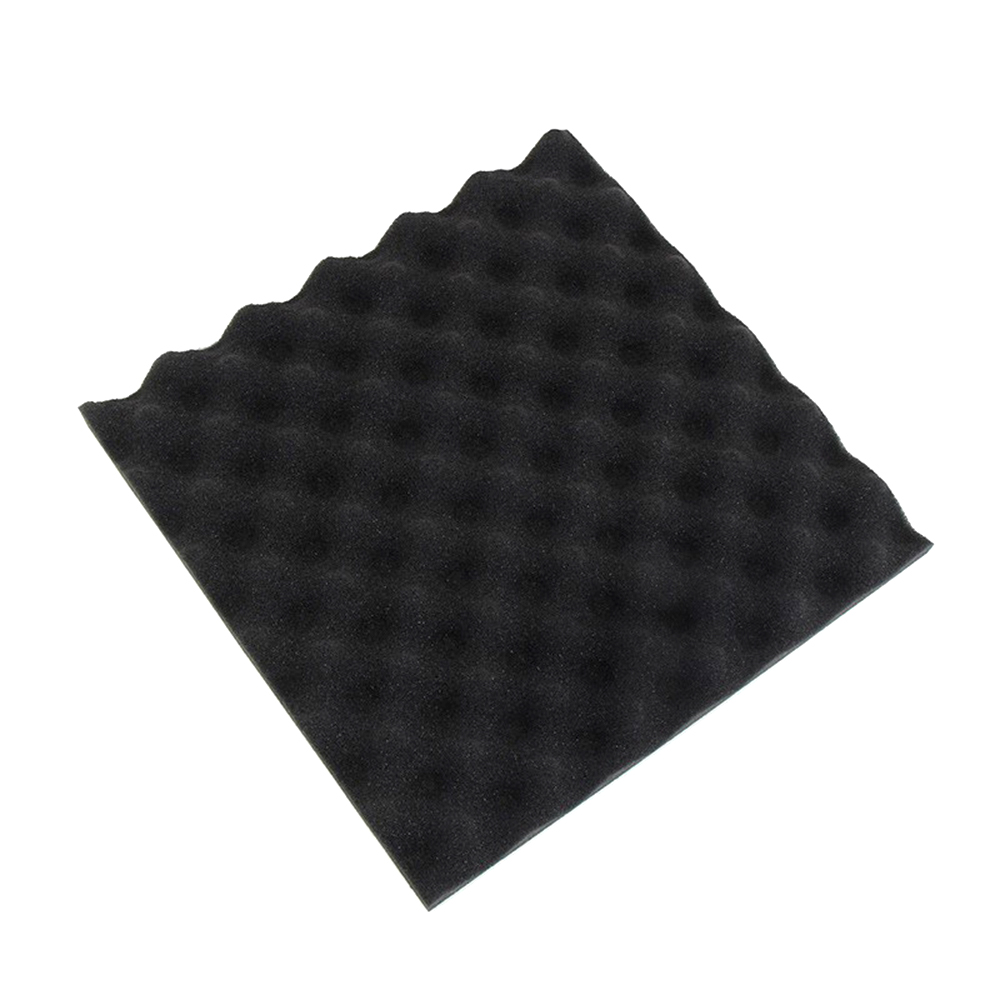

The unique egg-crate bump surface increases sound contact area, disperses sound waves and consumes acoustic energy inside closed micropores. It effectively eliminates indoor echo and reverberation, greatly improving indoor acoustic environment, far better than flat ordinary foam.
Compact closed-cell structure brings low thermal conductivity, stable heat preservation effect. It repels water penetration and prevents condensation on pipes and equipment surface, avoiding damp damage to facilities.
Formulated with high-efficiency flame retardant raw materials, the product meets B1 fire-resistant standard. It self-extinguishes once leaving open flame, no molten drop spreading, improving safety for indoor and industrial installation.
Made of NBR+PVC composite, the foam boasts outstanding oil resistance, corrosion resistance and anti-aging property. Soft and resilient, it resists cracking or permanent deformation after long-term extrusion and service.

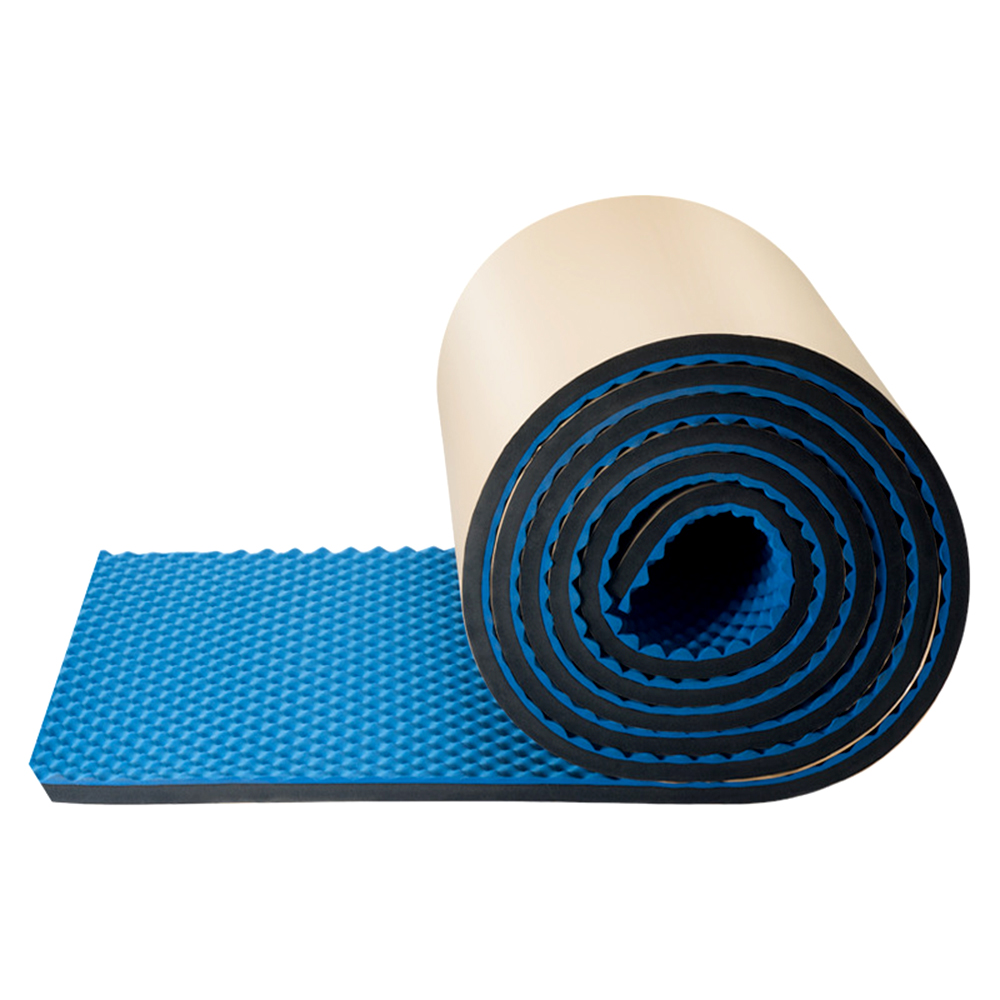

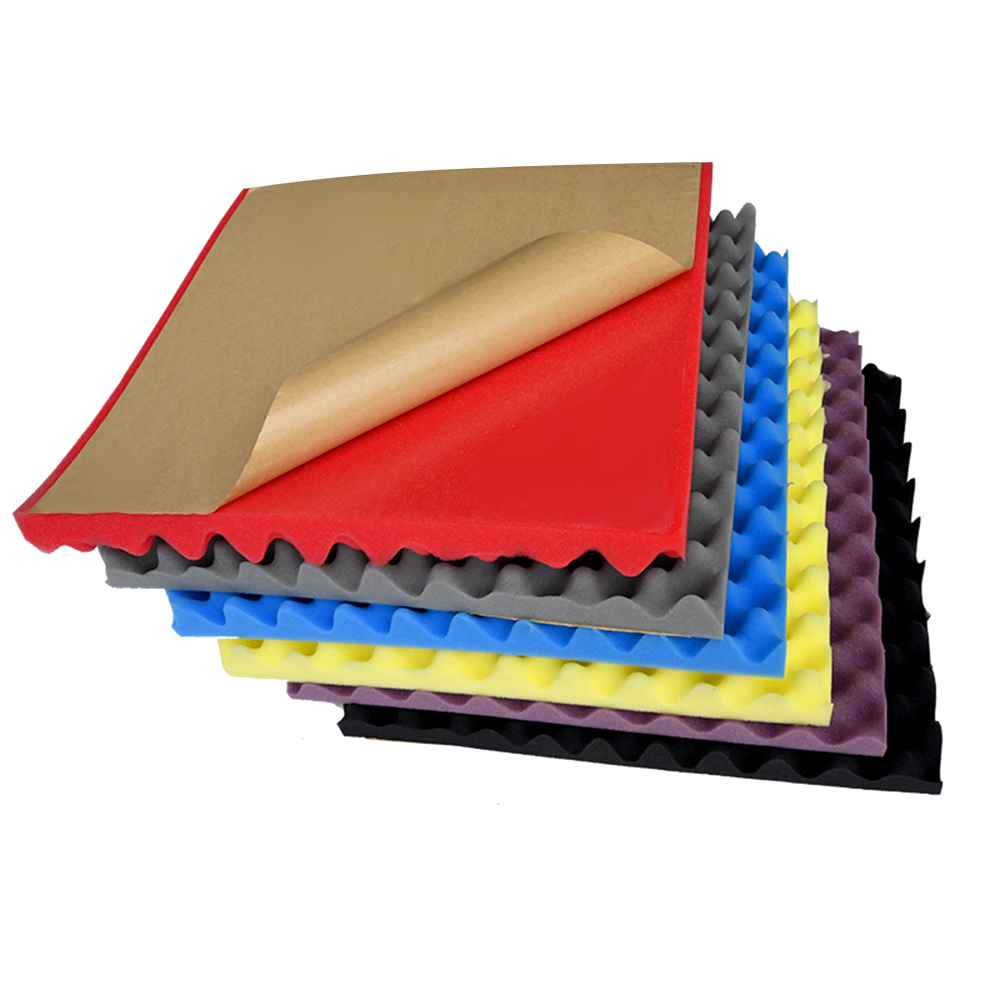

Lightweight texture can be freely cut into any shape with common knives. Optional self-adhesive backing allows direct pasting after peeling protective film, no extra glue required, saving construction time and labor cost.
| Key Attributes | Parameter | Key Attributes | Parameter |
|---|---|---|---|
| Material | NBR+PVC closed-cell blended foam | Type | Thermal & Acoustic Insulation |
| Product Name | Egg Crate Sound Absorption Foam | Thermal Conductivity | ≤0.034 W/m·K |
| Standard Size | 1000mm×2000mm | Thickness | 20~50mm (Customizable) |
| Density | 38~65kg/m³ (Customizable) | Shape | Flat base with convoluted egg-crate surface |
| Color | Black | Eco Friendly | Yes |
| Fire Grade | B1 Class Self-extinguishing Flame Retardant | Working Temp | -40℃ ~ +105℃ |
| Surface Option | Plain / Single-sided self-adhesive / Aluminum foil laminated | OEM | Accept OEM Service |
| Brand Name | Zhongjia | Place of Origin | Guangdong, China |
| Function | Sound Absorption, Thermal Insulation, Waterproof, Oil-resistant | After-sale Service | Online Technical Support |
| Packing | PE Bag | Warranty | 1 Year |
| Facing Options | Unfaced / Self-adhesive backing / Al foil | Water Absorption | Closed-cell nearly zero water absorption |
| Item | Detailed Specifications |
|---|---|
| Structure | Closed-cell rubber foam insulation , convoluted eggshell bump design |
| Flame Performance | B1 flame retardant, no molten drip when away from open flame |
| Core Chemical Property | Excellent oil resistance, anti-aging, acid & alkali resistant |
| Installation | Free cutting ; self-adhesive version directly pastable |
| Application | KTV, recording room, home theater, HVAC fan/air duct noise & heat insulation |
The NBR/PVC egg crate foam is a dual-function thermal & acoustic insulation material for architectural decoration and industrial HVAC fields, with core applications including:
Home Theater & Entertainment Space Soundproofing: Mounted on walls and ceilings of KTV, home theater and private cinemas to eliminate indoor echo and reverberation, optimize indoor acoustic environment for better audio experience.
Recording & Conference Room Acoustic Treatment: Applied for wall sound absorption of recording studios, podcast rooms and multi-functional conference rooms, suppress mid-high frequency noise and avoid sound reflection interference.
HVAC Air Duct & Fan Unit Insulation: Wrapped around air ducts, blowers and air-conditioning equipment to realize dual functions of equipment heat preservation and mechanical noise reduction, prevent pipeline surface condensation.
Industrial Equipment Noise Reduction: Lined inside compressor rooms, pump stations and mechanical equipment enclosures to absorb operation noise and insulate equipment surface heat.
Indoor Renovation & Machinery Cabinet Muffling: Widely used for household wall noise reduction, generator cabinet and equipment box sound insulation, lightweight and easy to tailor for irregular installation surfaces.
We provide one-stop customization service for egg crate foam tailored to acoustic decoration and HVAC project characteristics:
Size Customization: Custom length, width and thickness (20–50mm) according to construction drawings and on-site installation requirements;
Online Technical Guidance: Professional engineers provide real-time online consultation on product selection, cutting and installation schemes;
On-site Installation Guidance: Available on-site technical service for large-scale project orders to assist field construction;
Quality Follow-up: Full quality tracking for all bulk shipments, rapid solution for any product quality feedback;
Long-term Order Support: Stable stock supply and preferential bulk pricing for regular cooperative B2B customers.
A: Its unique egg-crate bump surface enlarges sound contact area to split incoming sound waves; closed micropores inside convert acoustic energy into heat, effectively eliminate indoor echo & reverberation for superior noise reduction effect.
A: Standard size 1m×2m, thickness 20–50mm adjustable; density customizable from 38–65kg/m³; optional single-sided self-adhesive backing or aluminum foil surface lamination.
A: It reaches B1 class flame retardant standard, self-extinguishes quickly once away from open flame without molten dripping, safe for indoor and mechanical installation.
A: Compact closed-cell structure brings excellent waterproof & oil-resistant property, nearly zero water absorption; stable thermal conductivity ≤0.034W/m·K to prevent equipment surface condensation.
