Double Sided Aluminum Foil Bubble Reflective Insulation Roll

Aluminium foil thermal insulation is a radiant barrier material made of reflective aluminium foil combined with bubble, XPE foam or fiberglass. It reflects 97% radiant heat, prevents heat transfer and moisture condensation. Lightweight, waterproof and easy to install, perfect for metal roofs, attics, walls, HVAC pipes and steel buildings to save energy costs.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Aluminium foil thermal insulation, also known as radiant barrier foil insulation, is a high-efficiency heat reflective building insulation material laminated with aluminium foil and base materials including air bubble, XPE/EPE foam, woven scrim or fiberglass cloth.

The aluminium foil surface can reflect over 97% radiant heat, effectively blocking heat transfer from sunlight, high-temperature roof and hot pipes. Different from traditional thermal cotton that only slows heat conduction, this foil insulation cuts radiant heat loss and heat gain simultaneously, greatly reducing indoor temperature fluctuation and cutting air conditioning & heating energy consumption.

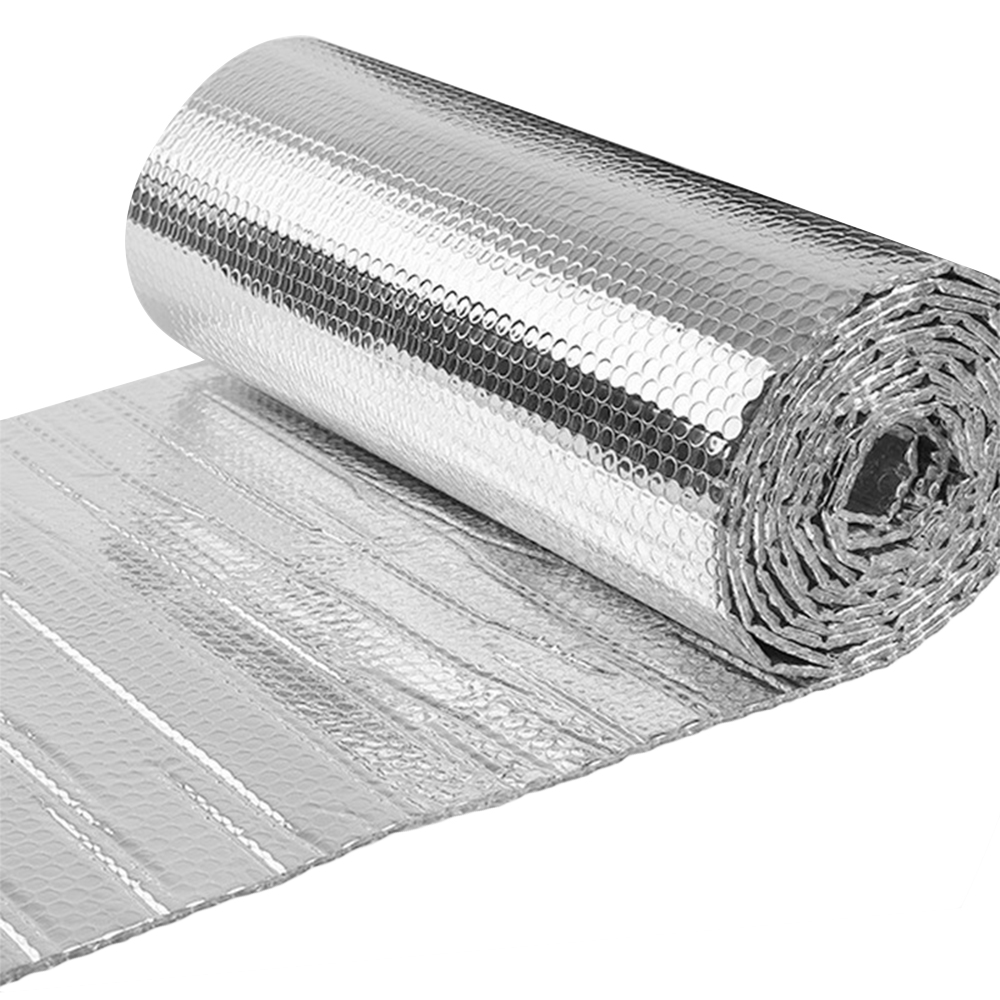

aluminum foil insulation film

Core Advantages of Bubble Aluminum Foil Insulation Film

Excellent Radiant Heat Reflection

The double-sided aluminum foil surface can reflect up to 97% radiant heat. It blocks high-temperature solar radiation from entering the room in summer and prevents indoor heat from escaping outdoors in winter, effectively reducing air-conditioning and heating energy consumption. Unlike traditional cotton insulation that only slows conductive heat transfer, it suppresses radiant heat loss from the source.

Dual Thermal Insulation Structure with Air Bubbles

Independent closed air bubbles are sandwiched between two layers of aluminum foil. Air is a natural low thermal conductivity medium, which hinders heat conduction and air convection. Combined with the reflective aluminum foil, it forms a dual heat insulation system for better temperature control.

Reliable Waterproof & Vapor Barrier Function

The dense aluminum foil layer completely isolates water vapor penetration. It avoids condensation, dampness and mildew on metal roofs, attics and warehouse walls, protecting building structures and stored goods from moisture damage. Lightweight, Flexible & Easy to Install

Soft and lightweight, it can be cut arbitrarily with ordinary scissors. No complicated construction equipment or professional skills are required. It can be fixed by staples, adhesive tapes or nails on roofs, walls and pipelines, greatly cutting construction labor costs.

Shock Absorption & Noise Reduction

Elastic bubble layers buffer the impact of raindrops, hail and external vibration on metal roofs. It lowers rain noise and outside noise transmission, integrating thermal insulation and sound insulation into one material.

Strong Weather Resistance & Long Service Life

Anti-oxidation, anti-ultraviolet and anti-corrosion composite structure. It will not crack or age quickly under long-term outdoor exposure, maintaining stable heat insulation performance year-round.

Safe, Non-toxic & Recyclable

Made of environmentally friendly PE bubble film and non-hazardous aluminum foil composite, no harmful volatile chemicals. The whole material is recyclable, safe for closed spaces such as houses and greenhouses.

Versatile Application Scenarios

Perfect for metal roofs, attics, garages, warehouses, sunrooms, greenhouses, RVs, containers and HVAC pipelines. Custom sizes, thicknesses and roll lengths are available for household DIY and large engineering projects.

Technical Specifications

Key Attributes	Details	Key Attributes	Details
Material	PE air bubble + double-sided aluminum foil composite	Type	Radiant barrier thermal insulation material
Product Name	Bubble Aluminum Foil Insulation Film	Heat Reflectivity	≥97% radiant heat reflection
Standard Size	Width: 0.5m/1m/1.2m; Length: 50m/100m/200m; Customizable	Thermal Conductivity	0.032–0.040 W/m·K
Thickness	2mm–10mm customizable	Density	80–180 g/㎡ customizable
Shape	Roll sheet	Eco Friendly	Yes, recyclable PE & aluminum foil
Design Style	Lightweight flexible construction wrap	Vapor Barrier Performance	100% impermeable to water vapor
Color	Silver metallic aluminum surface	OEM & ODM	Accept customized width, thickness, adhesive backing, printing
Brand Name	Zhongjia	Place of Origin	Guangdong, China
Core Function	Thermal insulation, sound damping, waterproof, anti-UV, shock absorption	After-sale Service	Online technical support, installation guidance
Packing	PE shrink bag + woven bag outer package	Warranty	1 year

Technical Item	Standard Parameter
Facing Options	Single-sided aluminum foil, double-sided aluminum foil, self-adhesive aluminum foil, anti-UV reinforced foil
Standard Dimensions	Width: 500/1000/1200mm; Bubble thickness: 2/3/5/8/10mm; Roll length customizable
Heat Reflection Rate	Up to 97% infrared radiant heat reflectivity
Thermal Conductivity	0.032–0.040 W/m·K under 25℃ ambient temperature
Operating Temperature Range	Long-term working: -40℃ ~ +80℃; Instant peak temp up to 120℃
Bubble Structure	Independent closed air bubble layer
Moisture Resistance	Water vapor transmission rate close to 0, prevents condensation & mildew
Water Absorption	≤0.3 kg/㎡ within 24h
Tensile Strength	Tear-resistant composite structure, no easy break during construction
Noise Reduction	Reduce raindrop impact noise on metal roof by 20–35dB
Anti-UV Performance	UV stabilized formula for long-term outdoor roof use, anti-aging
Application Scenarios	Metal roof, attic, garage, warehouse, sunroom, HVAC pipe, greenhouse, container, RV

Industry Applications

The bubble aluminum foil insulation film is a multifunctional radiant barrier thermal insulation material for construction, industrial and agricultural fields, with core applications including:

Metal Roof & Attic Heat Insulation

Laid under metal roof panels and attic spaces, it reflects 97% solar radiant heat to block summer high temperature and retain indoor heat in winter, stabilizing indoor temperature and cutting air conditioning energy costs.

Wall, Sunroom & Partition Thermal Wrap

Installed on exterior walls, sunroom walls and internal partitions, it prevents heat loss and condensation, avoiding wall mildew caused by temperature difference and moisture penetration.

Warehouse, Garage & Container Insulation

Suitable for steel warehouses, garages, shipping containers and prefab houses, it provides waterproof, heat insulation and rain noise reduction, protecting stored goods from high temperature and damp erosion.

HVAC Pipeline & Mechanical Equipment Wrapping

Wrapped around air ducts, water pipes and industrial machinery, it reduces pipeline heat loss, avoids pipeline condensation dripping, and weakens equipment operation noise transmission.

Agricultural Greenhouse Thermal Barrier

Used as reflective heat insulation lining inside greenhouses, it stabilizes internal temperature, reduces temperature difference between day and night, and improves crop growth environment.

RV, Trailer & Mobile Building Insulation

Lightweight flexible roll material for RV walls, floors and ceilings, easy to cut and install, achieving lightweight thermal insulation for mobile living spaces.

Customization Service

We provide personalized customization for Bubble Aluminum Foil Insulation Film to meet the specific needs of B2B clients in different industries:

Dimension Customization: Custom length (20-100m), width (1000-2000m) and thickness (5-10mm) based on project requirements;

Structure Customization: Custom composite structures (e.g., single/double aluminum foil, PE/PET bubble core, white PE film lamination);

Performance Customization: High-tear-resistance and UV-resistant versions for outdoor/industrial applications;

Bulk Customization: Custom packaging (roll/bundle) and brand logo printing for large-volume orders, supporting whole-supply-chain customization.

After-sales Support for B2B Clients

Warranty: 1-year quality warranty for all bulk orders, with professional quality inspection reports provided for each batch;

Online Technical Support: Professional engineers provide 7×16 online technical support, including installation guidance, pasting material selection and insulation scheme optimization;

Custom Scheme Design: Free customized insulation scheme design for B2B clients with large-scale or special-scenario projects (e.g., refrigerated transportation fleet, greenhouse parks);

Logistics & After-sales: Optimized logistics solutions for bulk orders (including door-to-door delivery), and a dedicated after-sales team to track project usage and solve problems in a timely manner, with lifelong technical consultation service provided for long-term cooperative clients.

FAQ

Q1: Why this foil film insulates ?

A: Double-sided reflective foil blocks 97% radiant heat.

Q2: What custom options do you offer?

A: Custom roll size, bubble thickness, self-adhesive/anti-UV layer. Single/double aluminum foil facing & OEM logo packaging available.

Q3: What temperature can it bear?

A: Long-term use: -40℃ ~ +80℃, peak temp up to 120℃. Flame retardant grade optional.

Q4: Where can I use this insulation film?

A: Metal roof, attic, sunroom, warehouse, container, HVAC pipe, greenhouse, RV & prefab house.

Q5: Can it stop moisture & condensation?

A: Yes. The aluminum foil acts as full vapor barrier to block dampness and avoid mildew.

aluminum foil insulation film double sided aluminum foil insulation roll aluminum foil roll aluminium foil thermal insulation reflective foil insulation aluminum foil insulation
